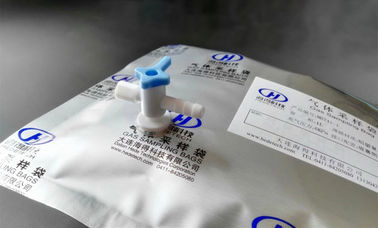

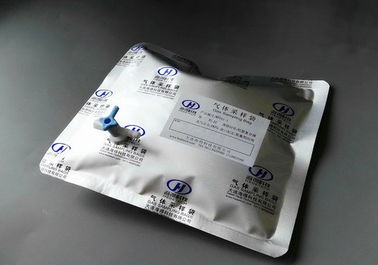

China aviod gas bags Al foil multi-layer gas sampling bags with side-opening stopcock valve silicone septum MBT41_0.05

China China aviod gas bags Al foil multi-layer gas sampling bags with side-opening stopcock valve silicone septum  MBT41_0.05 supplier
China aviod gas bags Al foil multi-layer gas sampling bags with side-opening stopcock valve silicone septum  MBT41_0.05 supplier China aviod gas bags Al foil multi-layer gas sampling bags with side-opening stopcock valve silicone septum  MBT41_0.05 supplier China aviod gas bags Al foil multi-layer gas sampling bags with side-opening stopcock valve silicone septum  MBT41_0.05 supplier

Large Image :  China aviod gas bags Al foil multi-layer gas sampling bags with side-opening stopcock valve silicone septum MBT41_0.05

Product Details:

Place of Origin: China
Brand Name: HEDE
Model Number: MBT41_0.05

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pieces
Price: US $2.19/piece
Packaging Details: customized
Payment Terms: T/T
Supply Ability: 100000 Pieces per Month
Contact Now
Detailed Product Description

China aviod gas bags Al foil multi-layer gas sampling bags with side-opening stopcock valve silicone septum MBT41_0.05      port 1/4'' 6.35m


China aviod gas bags Al foil multi-layer gas sampling bags with side-opening stopcock valve silicone septum  MBT41_0.05



      Aluminium foil multi-layer film is composite made of nylon membrane(PA), aluminium foil(AL)and polyethylene film(PE)with two-component adhesive.



Multi-Layer Foil
     Ideal for sampling and storing H2S, and for low molecular weight compounds such as Methane, CO/CO2, Hydrogen, and inert gases which are not stable in Tedlar, ALTEF, or FEP. Water- and vapour-proof, these flexible bags protect light sensitive compounds. Bags are available with several fitting and valve options. They provide up to five day sample stability with minimal absorption.


Features:
•excellent physical strength and chemical inertness
•no transparent, low adsorption and low permeability and air-tightness
•convenient to collect and store gas samples
•the bag is of plastic valve or metal valve, filling gas displacement is convenient; unique high-elastic tensile rubber sample pad is dedicated to needle sampling
•widely used in petrochemical industry, environmental protection and scientific research institutes

Standard Aluminium foil multi-layer Gas Sampling Bag Sizes:0.5L,1L,2L,3L,4L,5L,8L,10L,15L,20L,30L, 40L~6000L or customized size.
Select from a variety of sizes to suit your needs.

Specifications:



 Product Type  Sampling Bag
 Material  Multi-Layer (Al-foil)
 Volume(Liters)  50ML
 Model  MBT41_0.05L
 Brand  Hede





Applications:

    Aluminium-foil composite multi-layer film gas sampling bags can be used for light sensitive gas samples preservation, Mainly used for conventional analysis of sampling, filling stable chemical properties gas, e.g.oil cracking gas,natural gas,coal bed gas, smoke gas, ambient atmosphere,technological process reaction gas and inorganic gas such as nitrogen hydrogen oxygen argon gas.


New DEVEX multi-layer foil air/gas sampling bags with side-opening stopcock valve and septum valve syringe (NDEV41_1L)



Skype:sales@hedetech.com;E-mail:sales@hedetech.com

WhatsApp:+86 186 9863 1865

Wechat:66478437

Website: http://www.hedetech.com/en



Operating guide:

  • Inflation pressure: Avoid filling pressure higher than 6000Pa. Fill gas until the bag is fully expanded, however, it is not so tense when you press it using your finger.
  • Operating temperature: Working temperatures should be -60°C to +150°C for PTFE connector and -20°C to +80°C for PC stopcock valve .
  • Storage and use: Keep away from flame and high temperature when filling and storage. Avoid contacting sharp stuff.
  • Gas exchanging: Before use, flush sampling bags three times with the gas you want to fill.
  • Needle sampling: When using a needle to draw gas from highly elastic septum, squeeze the septum with fingers in order to restore the sealing property after pulling out the needle.



Precautions:

  • The sample gas in sampling bag to save time should not be too long, specific saving time depend on detection limit of experimental analysis requirement,gas component species,temperature and humidity,pressure, etc: generally, for pure inert gas, sampling bag can be used as a temporary storage container and recommended storage time less than 72 hours; for standard gas,flue gas,ambient atmosphere, recommended storage time less than 24 hours.
  • The gas sampling bag should be cleaned repeatedly replacement if it is reused. Suggest the same sample bag collecting samples of the same kind gas, don't mix.
  • High purity nitrogen gas heating replacement can reduce the interference of organic deposition.
  • Avoid filling pressure higher than 6000Pa, fill gas until the bag is fully expanded, however, it is not so tense when you press it using your finger.The overpressure filling can cause gas sampling bag burst damage.
  • When sampling and cleaning, please do not exceed 80% of the calibration volume, take 1L sampling bag for example, suggest sampling volume is less than 0.8 L.
